How to Build a Single-Slope Shed Roof: Framing & Layout

A single-slope shed roof (also called a mono-pitch or lean-to roof) features a single continuous inclined plane spanning between a higher front wall and a lower rear wall. Learn the geometric planning rules, wall height calculations, rafter layout sequence, and roofing material selection for building an efficient shed roof.

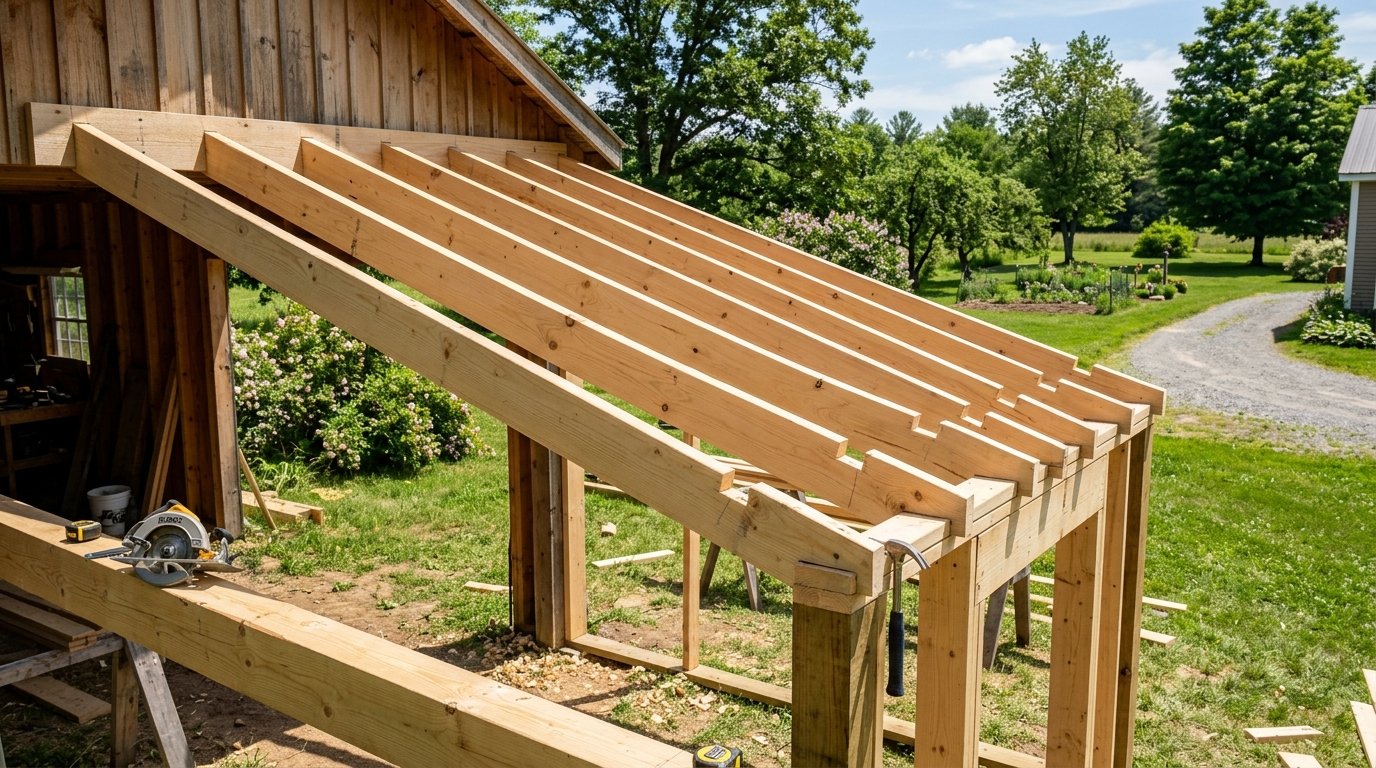

Wooden single-slope mono-pitch lean-to shed roof structure under construction showing rafters and birdsmouth notches — Mono-pitch shed roof rafter framing with birdsmouth notches resting securely on top wall plates.

Figure: Mono-pitch shed roof geometry: high-wall vs low-wall elevation rise and rafter slope.

Important Structural & Engineering Notice

Structural Span Notice: Rafter dimensions (e.g., $2times 6$ vs. $2times 8$), rafter spacing (16″ vs. 24″ on-center), and lumber grade must be selected using local building code span tables (IRC Table R802.5.1) based on your regional ground snow load and rafter span. This guide outlines geometry, layout, and sequence principles.

Step 1: Determine Dimensions, Pitch & Wall Rise

To establish the slope, calculate the required vertical height difference between your high wall and low wall:

$$text{Total Elevation Rise} = frac{text{Horizontal Run (feet)} times text{Pitch Ratio (X)}}{12}$$

Example: For a shed with a 10-foot horizontal run and a 3/12 pitch:

$$text{Rise} = frac{10 times 3}{12} = 2.5text{ feet (30 inches)}$$

Your front framing wall must be framed exactly 30 inches taller than the rear framing wall.

Step 2: Calculate True Rafter Slope Length

Determine rafter lumber length using the Pythagorean theorem plus your eave overhangs:

$$text{Rafter Span Length} = sqrt{text{Run}^2 + text{Rise}^2} + text{Front Overhang} + text{Rear Overhang}$$

For a $10text{ ft}$ run and $2.5text{ ft}$ rise with $1text{ ft}$ overhangs on both sides:

$$text{Slope Length} = sqrt{10^2 + 2.5^2} + 2 = sqrt{106.25} + 2 = 10.31 + 2 = mathbf{12.31text{ ft}}$$

Order 14-foot rafter boards to allow for plumb cuts and overhang trimming.

Step 3: Cut and Install Rafters

Plumb Cuts: Cut the top and bottom rafter ends at an angle matching your pitch ($14.04^circ$ for 3/12 pitch).
Seat Notches (Birdsmouth Cuts): Cut level $1.5″$ deep birdsmouth notches where rafters rest on the front and rear double top plates, ensuring full bearing across the wall studs.
Fastening: Secure rafters to top plates using hurricane ties / seismic framing anchors (such as Simpson H2.5A) at every rafter location.

Step 4: Sheathing, Underlayment & Roofing Material

Roof Pitch	Required Roofing Material System	Underlayment Standard
1/4:12 to 2/12	Single-Ply Membrane (TPO/EPDM) or Self-Adhered Roll Roofing	Fully adhered membrane substrate
2/12 to 3/12	Standing Seam Metal or Asphalt Shingles (w/ full ice barrier)	Continuous double underlayment (IRC §R905.2.2)
3/12 & Steeper	Corrugated Metal Panels, R-Panels, or Standard Asphalt Shingles	Single synthetic underlayment or #15 felt
