EXPOSED FASTENER SYSTEMS
Corrugated Metal Roofing: Costs, Lifespan & Profiles

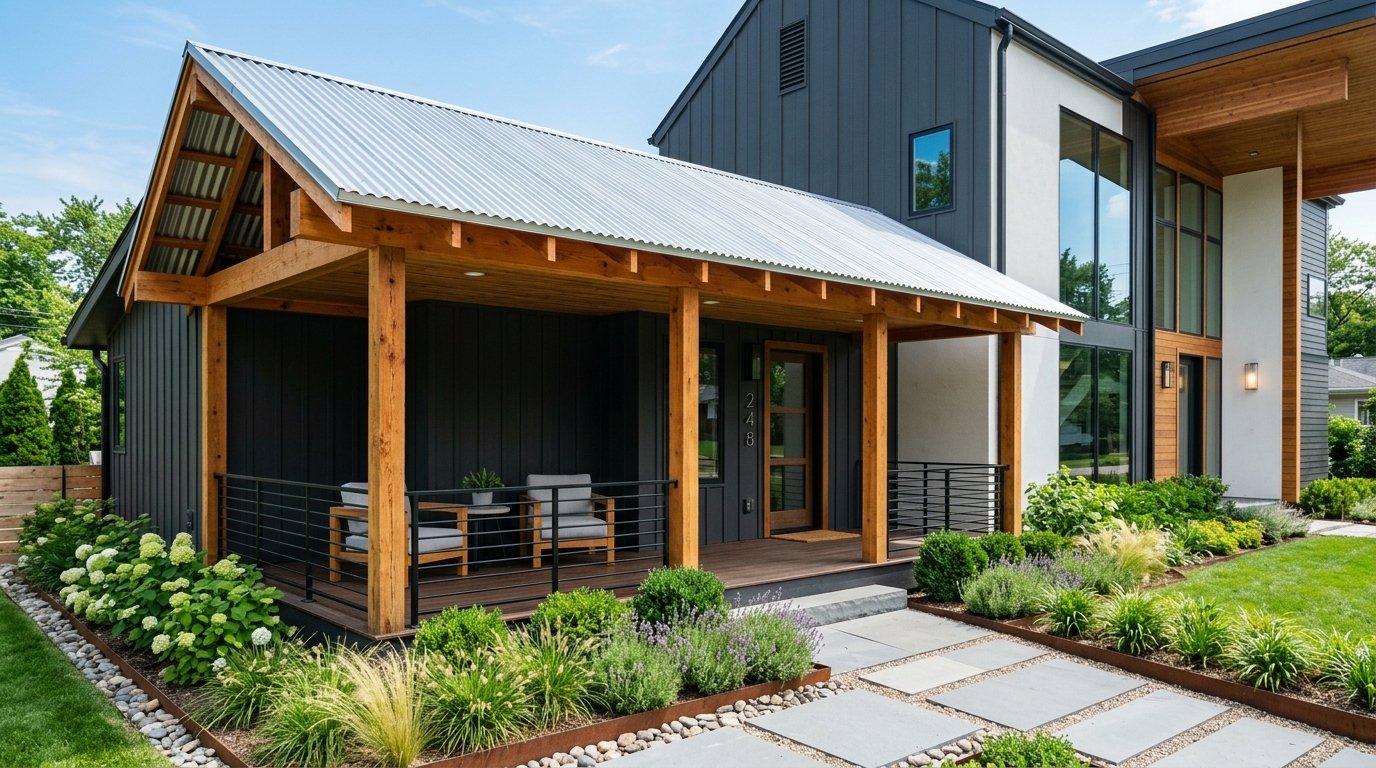

Corrugated metal roofing features repetitive wave-like sinusoidal ribs that provide exceptional structural stiffness in lightweight steel or aluminum sheets. At $5.00 to $9.00 per square foot installed ($500 to $900 per square), corrugated panels offer a cost-effective, storm-resistant roofing solution for homes, porches, and outbuildings.
Corrugated Metal Benchmarks
- Installed Cost Range: $5.00 to $9.00 per sq ft ($500 to $900 per square).
- Expected Service Life: 30 to 45 years (with periodic screw maintenance).
- Fastening Method: Exposed self-drilling screws with EPDM sealing washers.
- Standard Minimum Pitch: 3/12 slope ($14.04^circ$).
How Corrugated Panels Achieve High Strength
Flat sheet metal bends easily under minimal load. By roll-forming the sheet into continuous 1/2-inch or 7/8-inch sinusoidal waves, the metal gains structural rigidity, allowing it to span across horizontal wood purlins or solid plywood decking without sagging.
Corrugated vs. Standing Seam Comparison
| Feature | Corrugated Metal Roofing | Standing Seam Metal Roofing |
|---|---|---|
| Installed Cost / Sq Ft | $5.00 – $9.00 (50% cheaper) | $10.00 – $17.00 |
| Fastener System | Exposed screws through panel face | Concealed clips beneath seams |
| Screw Gasket Lifespan | 15 – 20 Years (requires screw tightening/reseal) | Lifetime (no exposed screws) |
| Minimum Roof Pitch | 3:12 | 1/2:12 to 2:12 |
| Aesthetic Style | Rustic, modern industrial, agricultural | Sleek, architectural, contemporary |
Maintenance Requirements: The Exposed Fastener Rule
Because corrugated panels use through-fastened screws, thermal expansion and contraction over 15 to 20 years can compress and degrade the rubber EPDM sealing washers. Performing a visual inspection every 5 years to re-tighten backed-out screws ensures watertight performance for decades.
